160T Double Working Table Vacuum Vulcanizing Hydraulic Press Machine

Product model：Yz33

Product number：07

Feature：

Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automati

Details

PLATE VULCANIZING HYDRAULIC PRESS

Yz33 Series

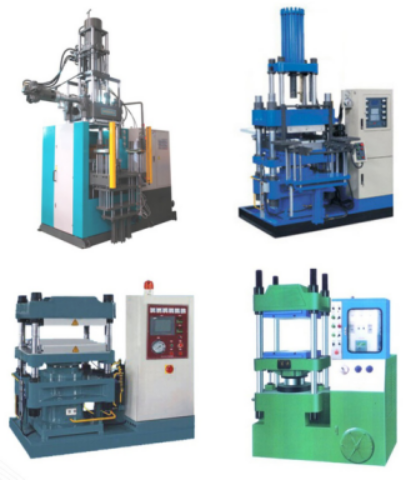

MACHINE APPEARANCE

午夜看一级特黄A大片

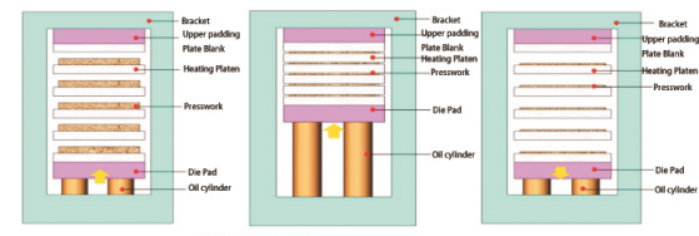

PRESSING PROCESS DIAGRAM

午夜看一级特黄A大片

DATA SHEET

Model		unit	Yz33-25T	Yz33-50T	Yz33-63T	Yz33-100T	Yz33-160T	Yz33-250T
Clamping Force		KN	250	500	630	1000	1600	2500
Working layer		Qty.	2~4	2~4	2~4	2~4	2~4	2~4
Piston stroke		mm	180	250	250	250/250	250/250	500
Heating Platen daylight		mm	90	125	125	125	125	125
Heating Platen Size	Left-right	mm	350	400	500	600	750	900
Heating Platen Size	Front-back	mm	350	400	500	600	850	900
Heating plate power		KW	1.5	2.2	3	7.5	11	15
Motor power		KW	7.2	9	10.8	33.75	45	45

OPTIONAL DIAGRAM

午夜看一级特黄A大片
